IEC 61753-2-3 pdf download.Fibre optic interconnecting devices and passive components performance standard

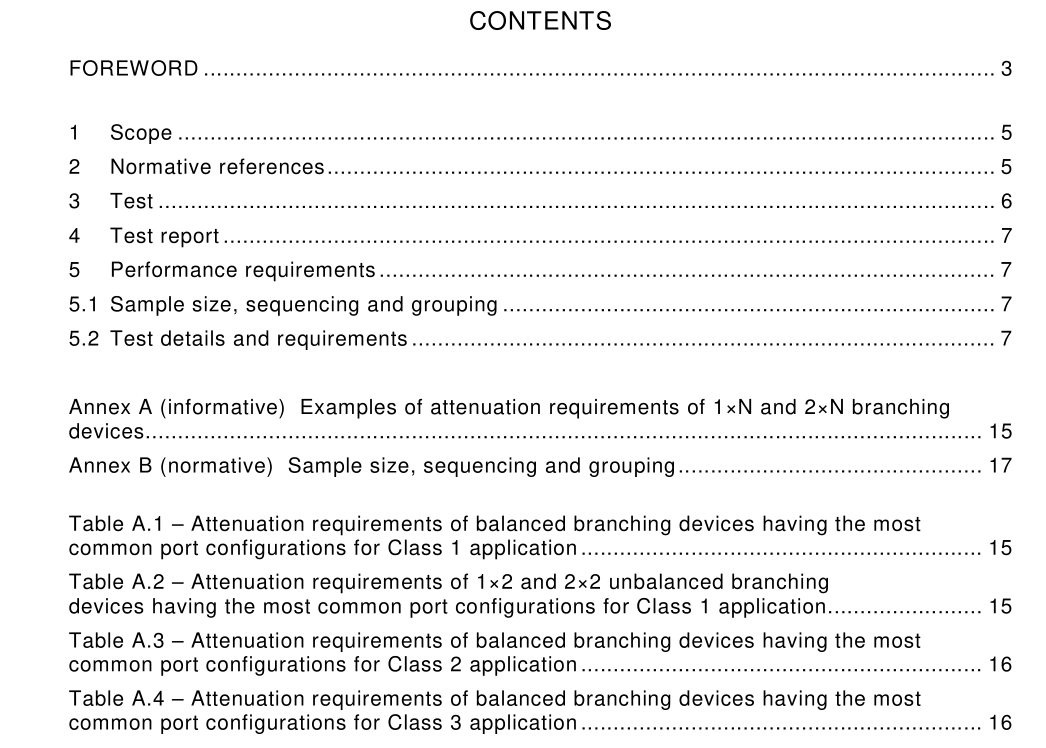

1 Scope
This part of IEC 61 753 contains the minimum initialisation test and measurement require- ments and severities which a branching device shall satisfy in order to be categorised as meeting the IEC standard. The requirements cover balanced non-connectorised single-mode 1 ×N and 2×N non-wavelength-selective branching devices for use in an IEC Category U environment (N is the number of output ports). The specifications of unbalanced branching devices are limited to 1 ×2 and 2×2 devices because they are the most commonly used.
2 Normative references
The following normative documents contain provisions which, through reference in this text, constitute provisions of this part of IEC 61 753. For dated references, subsequent amendments to, or revisions of, any of these publications do not apply. However, parties to agreements based on this part of IEC 61 753 are encouraged to investigate the possibility of applying the most recent editions of the normative documents indicated below. For undated references, the latest edition of the normative document referred to applies. Members of ISO and IEC maintain registers of currently valid International Standards. IEC 60793-1 -1 :1 995, Optical fibres – Part 1 : Generic specification – Section 1 : General IEC 61 300 (all parts), Fibre optic interconnecting devices and passive components – Basic test and measurement procedures IEC 61 300-2-1 :1 995, Fibre optic interconnecting devices and passive components – Basic test and measurement procedures – Part 2-1 : Tests – Vibration (sinusoidal) IEC 61 300-2-4:1 995, Fibre optic interconnecting devices and passive components – Basic test and measurement procedures – Part 2-4: Tests – Fibre/cable retention IEC 61 300-2-5:1 995, Fibre optic interconnecting devices and passive components – Basic test and measurement procedures – Part 2-5: Tests – Torsion/twist IEC 61 300-2-1 2:1 995, Fibre optic interconnecting devices and passive components – Basic test and measurement procedures IEC 61 300-2-22:1 995, Fibre optic interconnecting devices and passive components – Basic test and measurement procedures – Part 2-22: Tests – Change of temperature IEC 61 300-2-26:1 995, Fibre optic interconnecting devices and passive components – Basic test and measurement procedures – Part 2-26: Tests – Salt mist IEC 61 300-2-27:1 995, Fibre optic interconnecting devices and passive components – Basic test and measurement procedures – Part 2-27: Tests – Dust – Laminar flow IEC 61 300-2-28:1 995, Fibre optic interconnecting devices and passive components – Basic test and measurement procedures – Part 2-28: Tests – Industrial atmosphere (sulphur dioxide) IEC 61 300-2-45:1 999, Fibre optic interconnecting devices and passive components – Basic test and measurement procedures – Part 2-45: Tests – Durability test by water immersion IEC 61 300-3-2:1 999, Fibre optic interconnecting devices and passive components – Basic test and measurement procedures – Part 3-2: Examinations and measurements – Polarization dependence of attenuation in a single-mode fibre optic device IEC 61 300-3-3:1 997, Fibre optic interconnecting devices and passive components – Basic test and measurement procedures – Part 3-3: Examinations and measurements – Monitoring change in attenuation and in return loss (multiple paths) IEC 61 300-3-5:2001 , Fibre optic interconnecting devices and passive components – Basic test and measurement procedures – Part 3-5: Examinations and measurements – Wavelength dependence of attenuation IEC 61 300-3-6:1 997, Fibre optic interconnecting devices and passive components – Basic test and measurement procedures – Part 3-6: Examinations and measurements – Return loss IEC 61 300-3-20:2001 , Fibre optic interconnecting devices and passive components – Basic test and measurement procedures – Part 3-20: Examinations and measurements – Directivity of fibre optic branching devices IEC 61 753-2-1 :2000, Fibre optic interconnecting devices and passive components performance standard – Part 2-1 : Fibre optic connectors terminated on single-mode fibre for category U – Uncontrolled environment
3 Test
All test methods are in accordance with the IEC 61 300 series of standards. The samples shall be terminated onto single-mode fibres according to Type B1 .1 of IEC 60793-1 -1 in either coated fibres (primary and secondary) or reinforced cable format. Each test defines the number of samples to be evaluated. All tests shall be carried out to validate performance over the optical pass-bands of 1 260 nm to 1 360 nm and 1 480 nm to 1 580 nm. This is the minimum requirement for devices corres- ponding to Class 1 as described in 5.2. Extensions to these windows are covered by classes 2 and 3. Class 2 specifies additional attenuation limits for 1 450 nm to 1 480 nm and 1 580 nm to 1 600 nm. Class 3 devices shall meet Class 2 requirements and additionally have defined attenuation limits for 1 600 nm to 1 650 nm.
